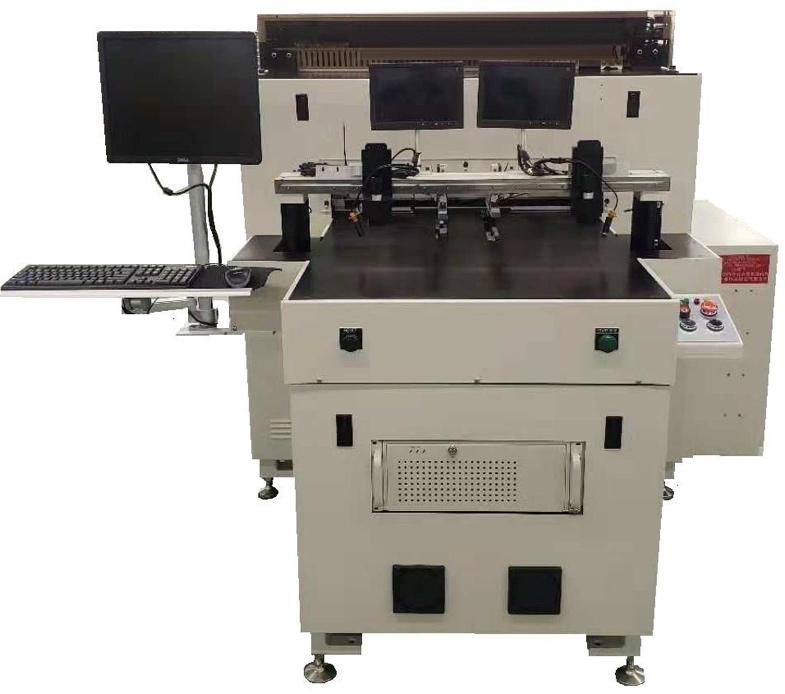

ATP-1000/3000E
4-Camera Automatic Post-Etch Punch System
4 Cameras | 8+ Panels/Min | ±0.001" Repeatability | Auto Load/Align/Unload |
| A fully automatic, cost-effective post-etch punch built on Multiline’s proven four-post die set platform trusted by PCB fabricators worldwide for over 30 years. Reliable production-rate punching with the precision tooling that defines the Multiline standard. IDEAL FOR: Mid-volume PCB fabricators, production environments requiring reliable automatic operation, shops expanding post-etch punch capacity, and fabricators seeking a cost-effective Multiline platform. |
KEY FEATURES
Fully Automatic Operation — Automatic panel loading, alignment, punching, and unloading eliminates operator intervention and ensures consistent throughput
Full-Size Die Block — Accommodates 4 slots, 8 holes, and 8 castings for flexible tooling configurations — same proven platform as premium models
Thin Material Capability — Handles materials down to 0.002" (2 mil) core thickness, supporting advanced multilayer constructions
Flexible Tooling — Supports slot, round hole, edge-referenced, legacy 2-hole, and peripheral tooling configurations
Proven Precision Platform — Four-post die set construction ensures perfect punch-to-die alignment, maintaining accuracy across millions of cycles
TECHNICAL SPECIFICATIONS
Overall Repeatability | ±0.001" (±25.4 μm) |
Camera System | 4 cameras |
Throughput (4-camera) | 8+ panels per minute |
Panel Size Range | 12" × 14" to 24" × 28" |
Material Thickness | 0.002" to 0.062" (2 mil to 62 mil) |
Tooling Configuration | 4 slots, 8 holes, 8 castings |
Die Set Construction | Four-post precision die set |
Operating System | Windows® platform |
Panel Loading | Automatic |
Panel Alignment | Automatic |
Panel Unloading | Automatic |
Certifications | CE Certified |
PHYSICAL SPECIFICATIONS
Length | 138" (3,505 mm) |
Width | 99" (2,515 mm) |
Height | 72" (1,829 mm) |
Weight | ~7,170 lbs (~3,252 kg) |
Compressed Air | 90 PSI (6.2 bar) |
AVAILABLE OPTIONS
■ Extended Panel Size: Custom tooling layouts for non-standard panel sizes
■ MES Integration: SECS-GEM compliance (contact factory for availability)
■ Additional Tooling: Custom punch and die configurations for specific requirements
MULTILINE POST-ETCH PUNCH PRODUCT FAMILY
ATP-1000/3000E | ATP-7800 | ECP-4000/8000 | |
Cameras | 4 | 8 (4+4) | 4 / 8 (4+4) |
Repeatability | ±0.001" | ±0.0005" | ±0.0003" |
Throughput | 8+ panels/min | 9+ panels/min | 7–8 panels/min |
Panel Size (max) | 24″ × 28″ | 24″ × 30″ | 24″ × 30″ |
MES / SECS-GEM | Contact Factory | Optional | Optional |
Inspection Mode | — | — | Yes (ECP-8000) |
Best For | Cost-effective production | High throughput, legacy upgrades | HDI, mil-spec, precision |
Specifications subject to change. Contact WKK America for current pricing, availability, and detailed technical specifications.
