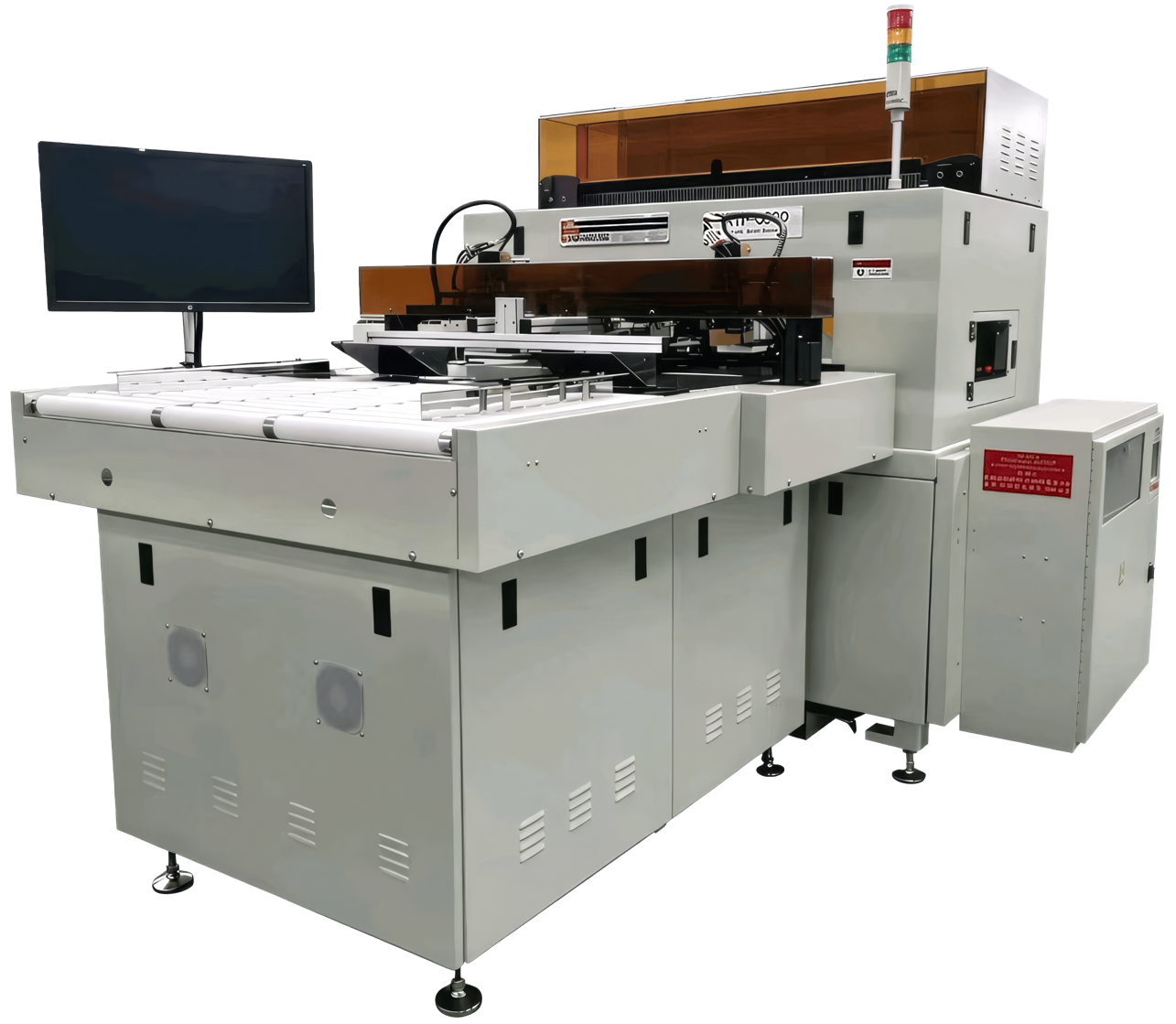

ATP-7800
8-Camera High-Throughput Post-Etch Punch System
9+ Panels/Min | 8 Cameras | Win 11 Platform | ±0.0005" Repeatability | Legacy Compatible |
| Engineered for high-volume PCB fabricators who prioritize throughput without compromising accuracy. 9+ panels per minute with backward compatibility for legacy Optiline systems — a clear upgrade path for existing users. IDEAL FOR: High-volume fabricators, EMS companies, legacy Multiline/Optiline upgrades, and throughput-focused operations requiring 8-camera deformation analysis. |
KEY FEATURES
8-Camera Vision — 4 top + 4 bottom cameras for comprehensive panel imaging, target acquisition, and deformation analysis
Legacy Compatibility — Standard 2-camera Optiline PE mode enables seamless replacement of existing installations
High Resolution Positioning — XYθ positioning with <1 μm resolution for micron-level accuracy
Remote Hydraulics — Hydraulic system located away from material platform, ensuring clean environment for sensitive PCB materials
SPC Data Collection — Real-time statistical process control for trend analysis and process optimization
TECHNICAL SPECIFICATIONS
Punch Repeatability | ±0.0005" (±12.7 μm) |
Positional Accuracy of Tooling | ±0.0008" (±20.3 μm) |
Vision System Repeatability | ±0.00005" (±1.27 μm) |
Image to Punch Accuracy | ±0.0005" (±12.7 μm) |
Throughput (2-camera) | 9+ panels per minute |
Throughput (8-camera) | 7 panels per minute |
Cameras | 8 (4 top / 4 bottom) |
Operating System | Windows 11 |
Panel Size (Standard) | 12" × 14" to 24" × 30" |
Panel Size (Optional) | Up to 25" × 49" |
MES Integration | SECS-GEM (optional) |
Housing | Open (manual + auto) or Full Cover (auto only) |
Certifications | CE Certified; UL under evaluation |
AVAILABLE OPTIONS
■ Automatic Pre-Alignment: Fully automated operation without operator
■ MES Package: SECS-GEM for factory automation integration
■ Extended Panel Size: Up to 25" × 49" for large-format applications
■ Full Machine Cover: Safety glass enclosure for automatic loading operations
MULTILINE POST-ETCH PUNCH PRODUCT FAMILY
ATP-1000/3000E | ATP-7800 | ECP-4000/8000 | |
Cameras | 4 | 8 (4+4) | 4 / 8 (4+4) |
Repeatability | ±0.001" | ±0.0005" | ±0.0003" |
Throughput | 8+ panels/min | 9+ panels/min | 7–8 panels/min |
Panel Size (max) | 24″ × 28″ | 24″ × 30″ | 24″ × 30″ |
MES / SECS-GEM | Contact Factory | Optional | Optional |
Inspection Mode | — | — | Yes (ECP-8000) |
Best For | Cost-effective production | High throughput, legacy upgrades | HDI, mil-spec, precision |
Tighter tolerances may be achievable for specific applications. Physical dimensions and utility specifications available upon request.
