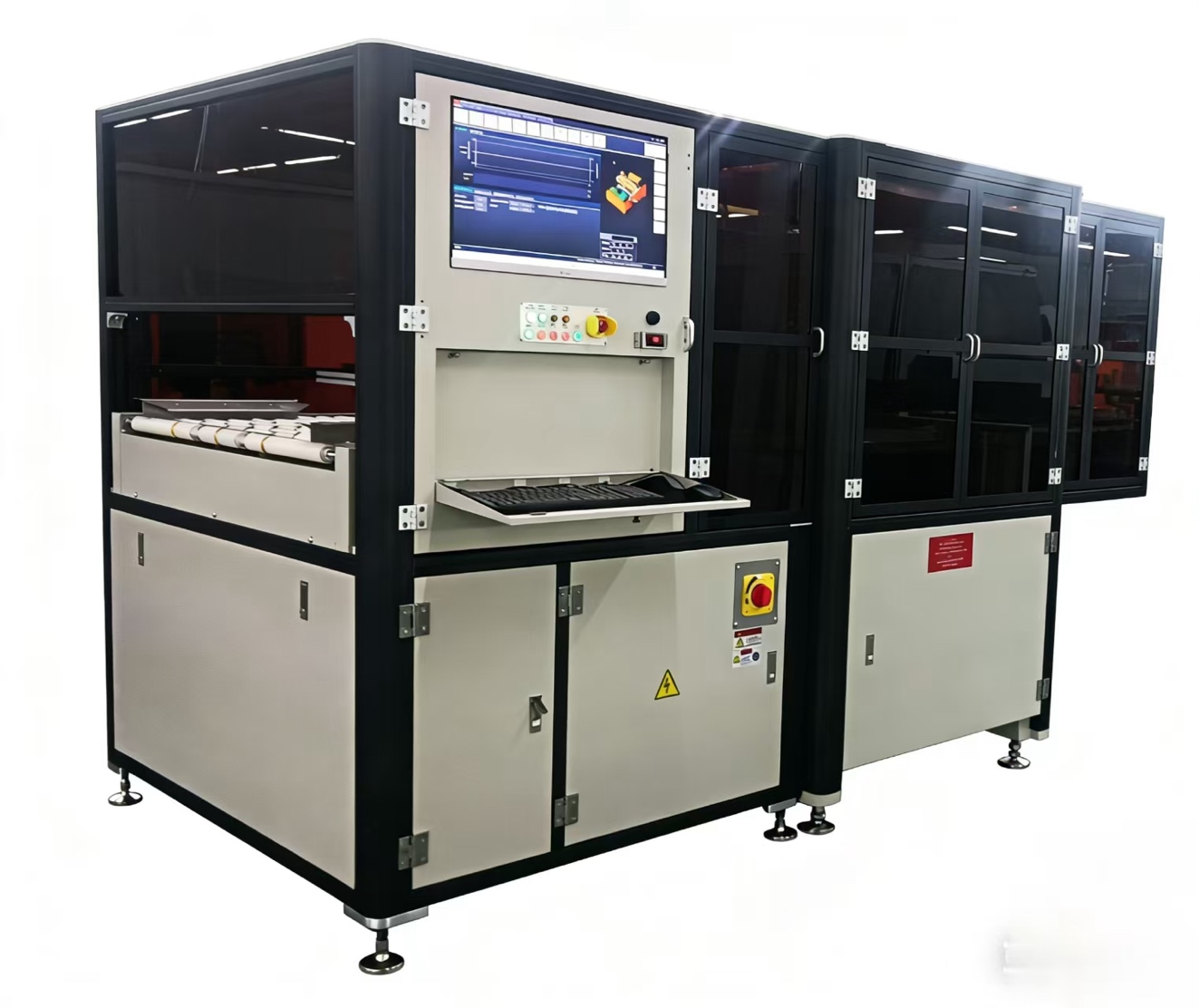

ECP-4000 / ECP-8000
Enhanced Capability Punch — Flagship Precision Series
±0.0003" Repeatability | 4 / 8 Cameras | Win 11 Platform | In-Line Inspection | MES SECS-GEM |
| The ECP-8000 is our flagship product — functioning as both a precision post-etch punch and an in-line inspection machine that checks squareness and coaxial error between top and bottom panel sides. Customers report dramatically improved yield rates. IDEAL FOR: HDI fabricators, mil-spec/aerospace shops, thin material specialists (flex/rigid-flex), and any operation where precision registration and quality verification are paramount. |
KEY FEATURES
In-Line Inspection (ECP-8000) — Checks squareness and coaxial error between top and bottom panel sides during production — customers report dramatically improved yield rates
Bronze Bushing System — ECP-exclusive four-post die set with bronze bushing and pin system ensures mechanical repeatability unmatched by competitors
Ultra-Thin Material Handling — Standard: down to 0.002" (2 mil). ECP-RF configuration handles materials to 0.001" (1 mil) at 4–5 panels/min
Easy Maintenance — Quick removal and replacement of punch/die modules for sharpening — designed for minimal production downtime
Enhanced Precision Available — ECP-8000 can achieve ±0.00015" repeatability for pin lamination applications
TECHNICAL SPECIFICATIONS
Punch Repeatability | ±0.0003" (±7.62 μm) |
Positional Accuracy of Tooling | ±0.0005" (±12.7 μm) |
Vision System Repeatability | ±0.00005" (±1.27 μm) |
Image to Punch Accuracy | ±0.0005" (±12.7 μm) |
ECP-8000 Throughput | 7 panels per minute |
ECP-4000 Throughput | 8 panels per minute |
Cameras | ECP-4000: 4 (top) | ECP-8000: 8 (4 top + 4 bottom) |
Operating System | Windows 11 |
Panel Size (Standard) | 12" × 14" to 24" × 30" |
Panel Size (Optional) | Up to 25" × 49" |
Min Material Thickness | 0.002" (2 mil); 0.001" with ECP-RF |
MES Integration | SECS-GEM (optional) |
Coaxial Inspection | ECP-8000 only |
Housing | Open (manual + auto) or Full Cover (auto only) |
Certifications | CE Certified; UL under evaluation |
AVAILABLE OPTIONS
■ Automatic Pre-Alignment: Fully automated operation without operator
■ Bronze Bushing System: ECP-exclusive high-precision die set
■ MES Package: SECS-GEM for factory automation integration
■ Extended Panel Size: Up to 25" × 49" for large-format applications
■ ECP-RF Configuration: Ultra-thin handling down to 0.001" (1 mil)
■ Full Machine Cover: Safety glass enclosure for automatic loading operations
MULTILINE POST-ETCH PUNCH PRODUCT FAMILY
ATP-1000/3000E | ATP-7800 | ECP-4000/8000 | |
Cameras | 4 | 8 (4+4) | 4 / 8 (4+4) |
Repeatability | ±0.001" | ±0.0005" | ±0.0003" |
Throughput | 8+ panels/min | 9+ panels/min | 7–8 panels/min |
Panel Size (max) | 24″ × 28″ | 24″ × 30″ | 24″ × 30″ |
MES / SECS-GEM | Contact Factory | Optional | Optional |
Inspection Mode | — | — | Yes (ECP-8000) |
Best For | Cost-effective production | High throughput, legacy upgrades | HDI, mil-spec, precision |
ECP-8000 can achieve ±0.00015" repeatability for pin lamination. Physical dimensions and utility specifications available upon request.
