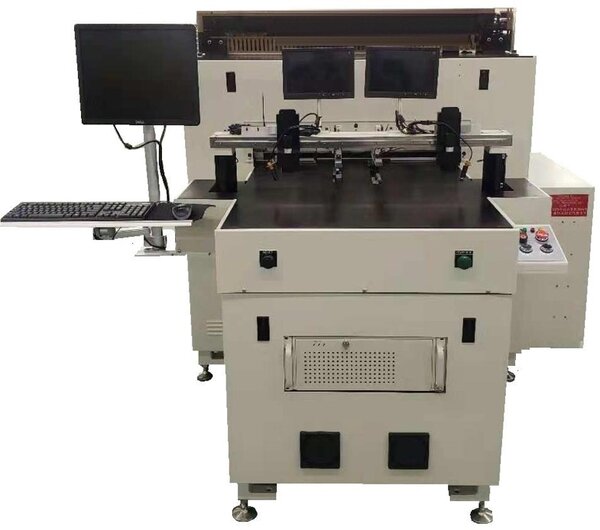

ATP-1000 / 3000E
4-Camera Automatic Post-Etch Punch • Cost-Effective Production
A fully automatic, cost-effective post-etch punch built on Multiline's proven four-post die set platform trusted by PCB fabricators worldwide for over 30 years. Reliable production-rate punching with the precision tooling that defines the Multiline standard. Fully automatic operation at 8+ panels per minute with ±0.001" repeatability.
Technical Specifications
Performance Specifications
| Parameter | ATP-1000/3000E |
|---|---|
| Camera System | 4 cameras |
| Overall Repeatability | ±0.001" (±25.4 μm) |
| Throughput (4-camera) | 8+ panels per minute |
| Panel Size Range | 12" × 14" to 24" × 28" |
| Material Thickness | 0.002" to 0.062" (2–62 mil) |
| Tooling Configuration | 4 slots, 8 holes, 8 castings |
| Die Set Construction | Four-post precision die set |
| Panel Loading | Automatic |
| Panel Alignment | Automatic |
| Panel Unloading | Automatic |
| Operating System | Windows® platform |
| Safety Certification | CE |
Physical Specifications
| Dimension | Value |
|---|---|
| Length | 138" (3,505 mm) |
| Width | 99" (2,515 mm) |
| Height | 72" (1,829 mm) |
| Weight | ~7,170 lbs (~3,252 kg) |
| Compressed Air | 90 PSI (6.2 bar) |
Ideal For
Mid-volume PCB fabricators, production environments requiring reliable automatic operation, shops expanding post-etch punch capacity, and fabricators seeking a cost-effective Multiline platform with proven precision tooling.
Key Features
Fully Automatic Operation
Automatic panel loading, alignment, punching, and unloading eliminates operator intervention and ensures consistent throughput across shifts.
4-Camera Vision System
Four cameras provide comprehensive panel imaging for target acquisition and accurate registration across all supported panel sizes.
8+ Panels per Minute
Production-rate punching that keeps pace with high-throughput inner layer lines while maintaining ±0.001" repeatability.
Full-Size Die Block
Accommodates 4 slots, 8 holes, and 8 castings — the same proven tooling platform as premium Multiline systems.
Thin Material Capability
Handles materials down to 0.002" (2 mil) core thickness for advanced multilayer constructions.
Four-Post Die Set
Precision construction ensures perfect punch-to-die alignment over years of continuous production use.
