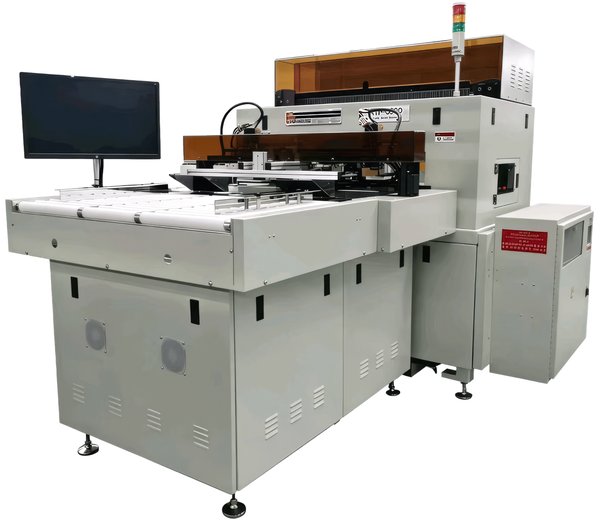

ATP-7800
8-Camera High-Throughput Post-Etch Punch System
Engineered for high-volume PCB fabricators who prioritize throughput without compromising accuracy. 9+ panels per minute with backward compatibility for legacy Optiline systems — a clear upgrade path for existing users.
Technical Specifications
| Parameter | ATP-7800 |
|---|---|
| Punch Repeatability | ±0.0005" (±12.7 μm) |
| Positional Accuracy of Tooling | ±0.0008" (±20.3 μm) |
| Vision System Repeatability | ±0.00005" (±1.27 μm) |
| Image to Punch Accuracy | ±0.0005" (±12.7 μm) |
| Throughput (2-camera) | 9+ panels per minute |
| Throughput (8-camera) | 7 panels per minute |
| Camera System | 8 cameras (4 top / 4 bottom) |
| Panel Size (Standard) | 12" × 14" to 24" × 30" |
| Panel Size (Optional) | Up to 25" × 49" |
| Legacy Compatibility | Yes — matches Multiline 2-camera target positions |
| Operating System | Windows 11 |
| MES Integration | SECS-GEM (optional) |
| Die Set Construction | Four-post precision die set |
| Safety Certification | CE |
Tighter tolerances may be achievable for specific applications. Physical dimensions available upon request.
Key Features
8-Camera Vision
4 top + 4 bottom cameras for comprehensive panel imaging, target acquisition, and deformation analysis.
Legacy Compatibility
Standard 2-camera Optiline PE mode enables seamless replacement of existing installations.
Highest Throughput
9+ panels per minute in 2-camera mode — the fastest system in the Multiline product family.
High Resolution Positioning
XYθ positioning with <1 μm resolution for micron-level accuracy.
Remote Hydraulics
Hydraulic system located away from material platform, ensuring clean environment for sensitive PCB materials.
SPC Data Collection
Real-time statistical process control for trend analysis and process optimization.
