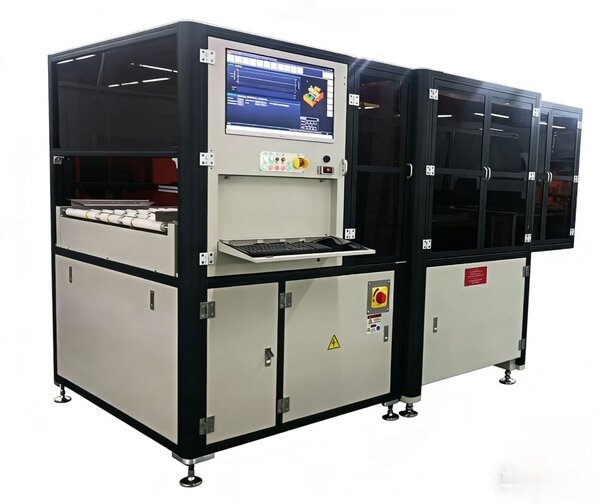

ECP-4000 / ECP-8000
Enhanced Capability Punch • Flagship Precision Series
Our flagship product — functioning as both a precision post-etch punch and an in-line inspection machine. The ECP-8000 checks squareness and coaxial error between top and bottom panel sides during production. Customers report dramatically improved yield rates. Available in 4-camera (ECP-4000) and 8-camera (ECP-8000) configurations with ±0.0003" repeatability.
Technical Specifications
| Parameter | ECP-4000 / ECP-8000 |
|---|---|
| Punch Repeatability | ±0.0003" (±7.62 μm) |
| Positional Accuracy of Tooling | ±0.0005" (±12.7 μm) |
| Vision System Repeatability | ±0.00005" (±1.27 μm) |
| Image to Punch Accuracy | ±0.0005" (±12.7 μm) |
| ECP-8000 Throughput | 7 panels per minute |
| ECP-4000 Throughput | 8 panels per minute |
| Camera Configuration | ECP-4000: 4 (top) | ECP-8000: 8 (4 top + 4 bottom) |
| Panel Size (Standard) | 12" × 14" to 24" × 30" |
| Panel Size (Optional) | Up to 25" × 49" |
| Min Material Thickness | 0.002" (2 mil); 0.001" with ECP-RF |
| Coaxial Inspection | ECP-8000 only |
| Operating System | Windows 11 |
| MES Integration | SECS-GEM (optional) |
| Die Set Construction | Four-post precision with bronze bushing system |
| Safety Certification | CE |
ECP-8000 can achieve ±0.00015" repeatability for pin lamination applications.
Key Features
In-Line Inspection (ECP-8000)
Checks squareness and coaxial error between top and bottom panel sides during production — customers report dramatically improved yield rates.
Bronze Bushing System
ECP-exclusive four-post die set with bronze bushing and pin system ensures mechanical repeatability unmatched by competitors.
Flexible Camera Configs
Choose ECP-4000 (4-camera, 8 panels/min) or ECP-8000 (8-camera, 7 panels/min with inspection) to match your requirements.
Ultra-Thin Material
Standard: down to 0.002" (2 mil). ECP-RF configuration handles materials to 0.001" (1 mil) at 4–5 panels/min for flex and rigid-flex.
Factory Integration
Windows 11 platform with optional SECS-GEM MES integration, real-time SPC data collection, and English-language interface.
Easy Maintenance
Quick removal and replacement of punch/die modules for sharpening — designed for minimal production downtime.
